Branched Hydrocarbons From Syngas and Carbon Dioxide in a Single Reactor

ChemCatBio 2023 Technology Brief

This study combines commercially available catalysts with a catalyst developed by ChemCatBio to intensify and streamline the conversion of renewable syngas and carbon dioxide (CO2) to hydrocarbons suited for making sustainable aviation fuel.

This research demonstrates a one-step approach to convert syngas—a mixture of carbon monoxide (CO), hydrogen, and CO2—to hydrocarbons. Renewable syngas, created during biomass gasification, contains about 20% CO2 after a standard reforming step. Using a single reactor to convert this CO2 alongside other syngas compounds provides a unique opportunity to increase carbon efficiency from gasification-based processes. Such a one-reactor approach can reduce capital and operating expenses compared to traditional, multi-reactor routes for making high-value, high-octane gasoline and sustainable aviation fuel.

Key Findings

Challenges and Next Steps

Related ChemCatBio Capabilities

Supporting Resources and Publications

"This syngas-to-hydrocarbons process intensification approach using a single reactor provides a new avenue to improve operational efficiency and carbon efficiency in the high-octane gasoline pathway, highlighted by high per-pass C4+ yields, and importantly, incorporation of CO2-derived carbon into the hydrocarbon products."

Key Findings

Stacked-Bed Copper-Modified Beta Zeolite (Cu/BEA) Catalyst Performs Best

Mixed catalyst beds provide high CO conversions and C4+ yields, but they also result in undesirable high CO2 selectivity above 45%. Stacked catalyst beds, on the other hand, increase C4+ selectivity and decrease CO2 selectivity by about 15%. Cu/BEA catalyst performed best in this initial assessment. These selectivity data indicate two advantages of positioning the hydrocarbon synthesis catalyst (BEA zeolite or Cu/BEA) downstream of the syngas-activating catalysts:

  1. It favors the hydrocarbon pool methylation chemistry, improving selectivity to C4+ products.
  2. It simultaneously minimizes the water–gas shift side reaction, decreasing undesirable CO2 selectivity.

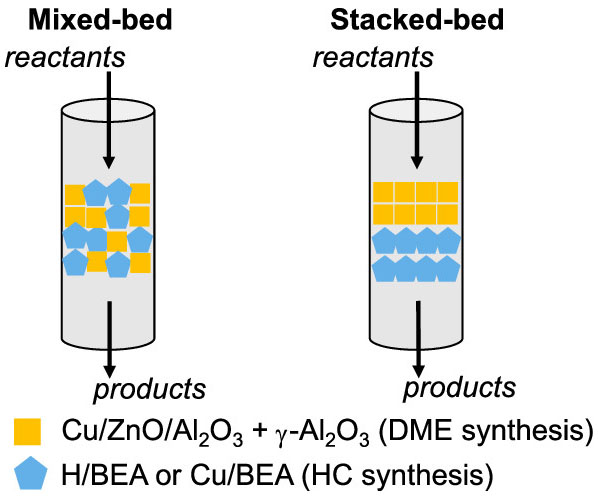

Product selectivity over mixed and stacked catalyst beds

More Cu/BEA in the Catalyst Composition Increases Hydrocarbon Yield

Data show that hydrocarbon yield can be controlled by changing the mass ratio of catalysts in the reactor. By increasing Cu/BEA content in syngas-activating catalysts, C4+ yields increased from 13.7% to 19.1% to 23.5%. Meanwhile, yields of undesirable dimethyl ether decreased from 15.8% to 5.5%. Together, these results confirm the ability to control product yield simply by changing the composition of the catalyst.

Loading Level:

Yields of C4+ hydrocarbons and dimethyl ether as a function of Cu/BEA catalyst composition

Isotope Experiments Indicate CO2 Conversion to Hydrocarbon Products

Mass spectrometry and isotope tracing of syngas conversion reactions confirms the conversion of CO2 into hydrocarbons. When CO2 labeled with carbon-13 is fed through the reactor, mass fragment peaks shift to a mass-to-charge ratio of +1 or greater. This indicates CO2 activation and incorporation into desired hydrocarbon products like isobutane, triptane, and others.

Mass spectrometry of two abundant hydrocarbon products (isobutane and triptane) during syngas-to-hydrocarbons reactions. Orange data show results of 13C-labelled CO2. Blue lines show results of CO2 without isotopic labeling.

Return to top

Challenges and Next Steps

Risks and Challenges

Research Needs

To lower the cost and advance the direct syngas-to-hydrocarbons technology, three additional insights are needed:

Minimize CO2 selectivity to lower cost and maximize hydrocarbon yields—Determining the maximum CO2 that can be co-converted and minimum CO2 that can be produced from this process will be critical to lowering capital and operating costs.

Optimize the catalyst composition and reactor design—Initial research identified a simple relationship between relative Cu/BEA catalyst loading and hydrocarbon yield. Advanced reaction engineering is needed to optimize this relationship, and new reactor designs are of interest to further increase per-pass hydrocarbon yield.

Maintain performance with engineered forms of Cu/BEA catalyst—Transitioning from powdered catalysts for lab-scale research to engineered catalyst forms is complicated, requiring a balance of chemical, physical, and mechanical properties.
